Western Digital VelociRaptor WD5000HHTZ Hard Disk Drive, 500GB, 10000rpm, 64MB Cache, SATA 6 Gb/s

Supplier Rating

Manufacturer support

	Western Digital
	Manufacturer part no WD5000HHTZ Manufacturer's specification

Hard drive warranties Warranties do not cover loss of data.

Quick glance Cache 64 MB Interface SATA 6 Gb/s Capacity 500GB Speed 10000 Cost per Gigabyte $0.40 incl GST

Reviews Submit a review

Performance Specifications
Rotational Speed 10,000 RPM (nominal)
Buffer Size 64 MB
Load/unload Cycles 600,000 minimum

Transfer Rates
Buffer To Host (Serial ATA) 6 Gb/s (Max)

Physical Specifications
Capacity 500 GB
Interface SATA 6 Gb/s
User Sectors Per Drive 976,773,168

Physical Dimensions
Height 26.1 mm
Depth 147 mm
Width 101.6 mm
Weight 0.50 kg


Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 300G, 2 ms
Acoustics
Idle Mode 30 dBA (average)
Seek Mode 0 37 dBA (average)

Temperature
Operating 5° C to 55° C
Non-operating -40° C to 70° C


Electrical Specifications
Current Requirements
Power Dissipation
Read/Write 5.10 Watts
Idle 4.20 Watts
Standby 1.10 Watts
Sleep 1.10 Watts

While every attempt is made to ensure the information provided on this page is accurate, specifications change from time to time and we are not liable for any omissions or errors.

Please read our terms and conditions

Most popular products
	Seagate Barracuda ST1000DM003 Hard Disk Drive, 1000GB, 7200rpm, 64MB Cache, SATA 6 Gb/s $109.81
	Seagate Barracuda ST2000DM001 Hard Disk Drive, 2000GB, 7200rpm, 64MB Cache, SATA 6 Gb/s $148.33
	Seagate Barracuda ST3000DM001 Hard Disk Drive, 3000GB, 7200rpm, 64MB Cache, SATA 6 Gb/s $206.67
	Western Digital Green WD30EZRX Hard Disk Drive, 3000GB, 5400-7200rpm, 64MB Cache, SATA 6 Gb/s $207.45

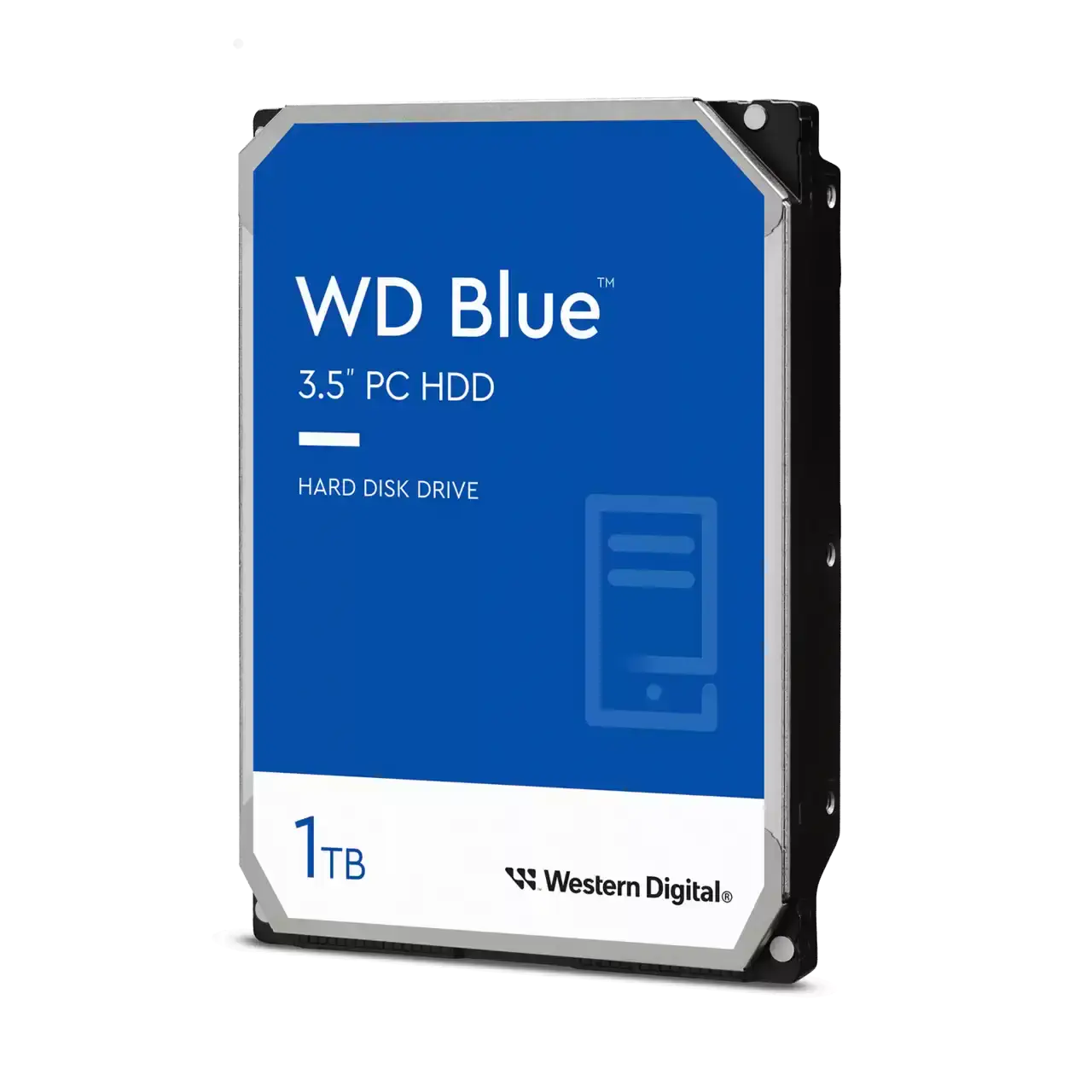

	Western Digital Blue WD10EZEX Hard Disk Drive, 1000GB, 7200rpm, 64MB Cache, SATA 6 Gb/s $106.38
