| Raritan EZ-116, 16-Port KVM Switch, USB / PS/2 / VGA, with cables, (8 cables included) |
|
In stock as at 21 May
|
|
|
| $482.36 incl GST (including FREE delivery) |
|
What do I get for my money?
|
|
|
|
Pay by direct credit and save $7.24
|
Quick glance
| Ports |
16
|
| Interface |
USB / PS/2 / VGA
|
| KVM cables included |
Yes
|
| Notes |
(8 cables included)
|
|
|
|
Overview
Note: Only 8 cables included
16 Port KVM Switch, PS/2 and USB, On-screen Display (OSD), with 8 x 1.8m KVM Cable
Features:
• Connect computers via PS/2 and/or USB.
• Supports Windows, Linux, Mac OS9/OSX, Sun Microsystems.
• On-Screen-Display (OSD) & Cascade Chain functions.
• OSD with intuitive menus for quick and effective navigation.
• Daisy chain switches to control up to 4096 PCs (16-Port) from a single console. Cascaded units do not need special configuration.
• Hot-pluggable: all devices connected to expreZo can be added or removed at any time without shutting down the devices.
• Easily switch between connected devices with:
- Hardware Push Button,
- Hot-Keys on PS/2 and/or USB keyboard,
- OSD menu.
• Auto Scan video for effortless monitoring.
• Supports LED display for PC and/or server status monitoring.
• Supports video resolutions up to 2048 x 1536.
• Enable/disable beeper during channel switching.
• Supports tiering with Dominion KX2 models.
• Rack mountable in 19” rack (1U).
• Firmware is upgradeable via a mini-USB port.
Specification:
Selection Method Push Button and Hot-Key (PS/2 / USB Keyboard)
Or On-Screen-Display (OSD)
LEDs Red for PC Selection
Green for PC On-Line ready
KVM Ports Video 8/16 x HDB-15 female (KB/MS) (PS/2 & USB signal combined)
Console Ports
- Keyboard 1 x 6 pin mini-DIN female
- Mouse 1 x 6 pin mini-DIN female
- Video 1 x HDB-15 female
- Keyboard 1 x USB - A type female
- Mouse 1 x USB - A type female
Auto-Scan Interval Adjustable time setting by OSD menu driven
DDC, DDC2 monitor Max. Resolution up to 2048x1536@65Hz
Hot Swappable Yes
Operating systems supported
- Windows 98SE/ME/2000/XP/2003/Vista/7 Server,
- Linux, Mac OS9/OSX and Sun Microsystems.
Power External power adapter, DC 5V, 2.0A
Dimensions (L X W X H) 44 x 15.7 x 4.5 cm (17.3 x 6.1 x 1.5 inch)
Unit Weight 1750g / 1900g
Housing material Metal
Operating Temperature 32~122°F (0~ 50°C)
Humidity 0%~80%RH
Firmware upgrade port Mini USB female
System Requirements
Local Console
Supports VGA, SVGA, Multisync monitor high resolution video - 2048x1536.
PS/2 and/or USB Keyboard/Mouse.
Computer or Server
PCs must support:
- VGA, SVGA or Multisync card.
- Type A USB port or mini-DIN 6 pin PS/2
keyboard and mouse.
Cables
Custom 4-in-1 cables included in the product package.
While every attempt is made to ensure the information provided on this page is accurate, specifications change from time to time and we are not liable for any
omissions or errors.
Please read our terms and conditions
|
|
| Most popular products |
|
LevelOne KVM-0223, 2-Port KVM Switch, USB / VGA / Audio, with cables, Built-in Cables
$66.79 |
|
|
Aten CS62US, 2-Port KVM Switch, USB / VGA / Audio
$66.13 |
|
|

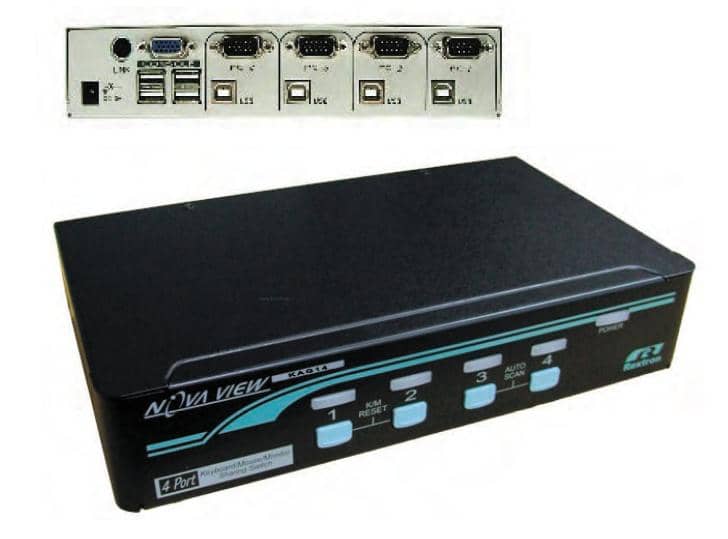

Rextron KAG-14, 4-Port KVM Switch, USB / VGA, with cables, Black
